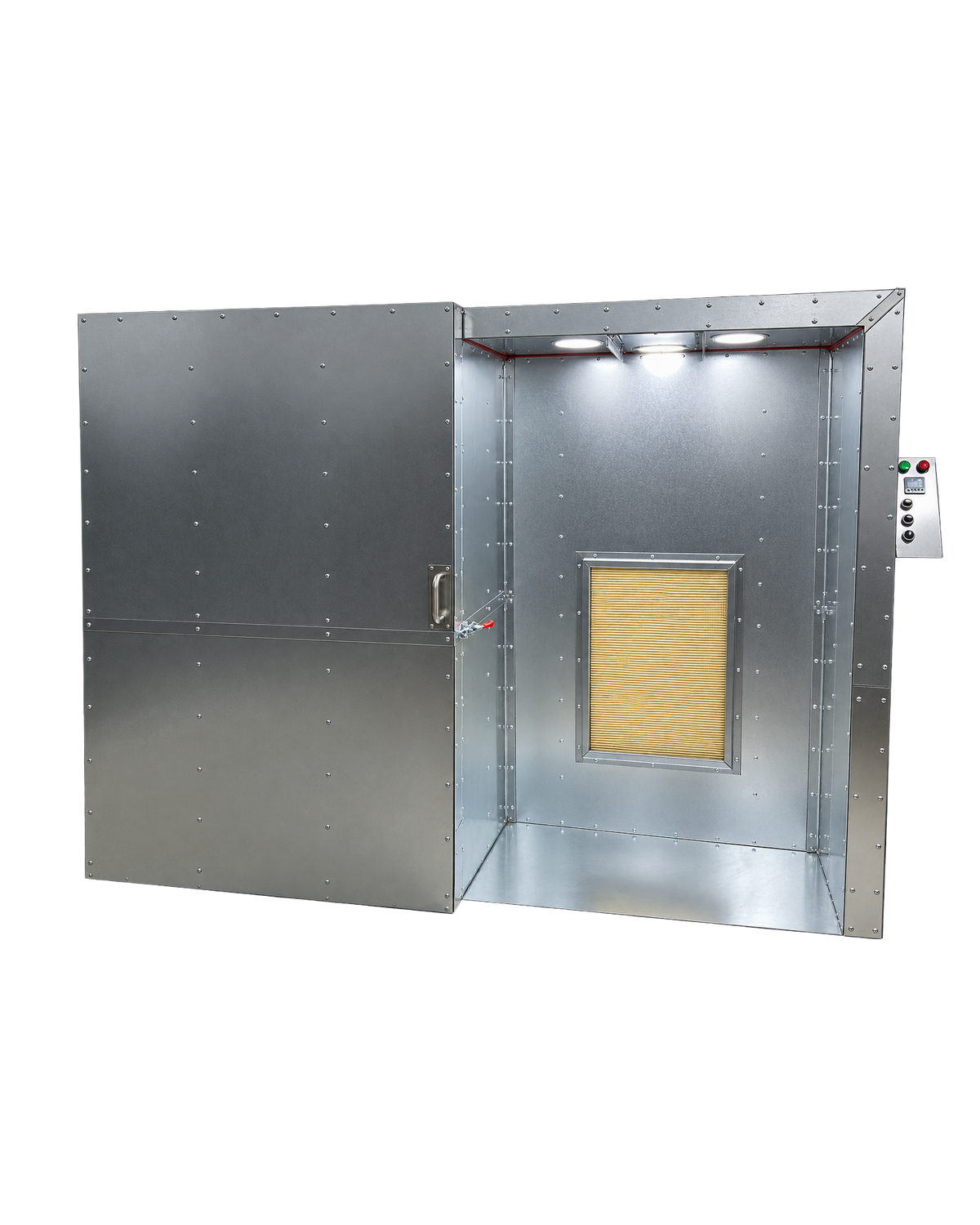

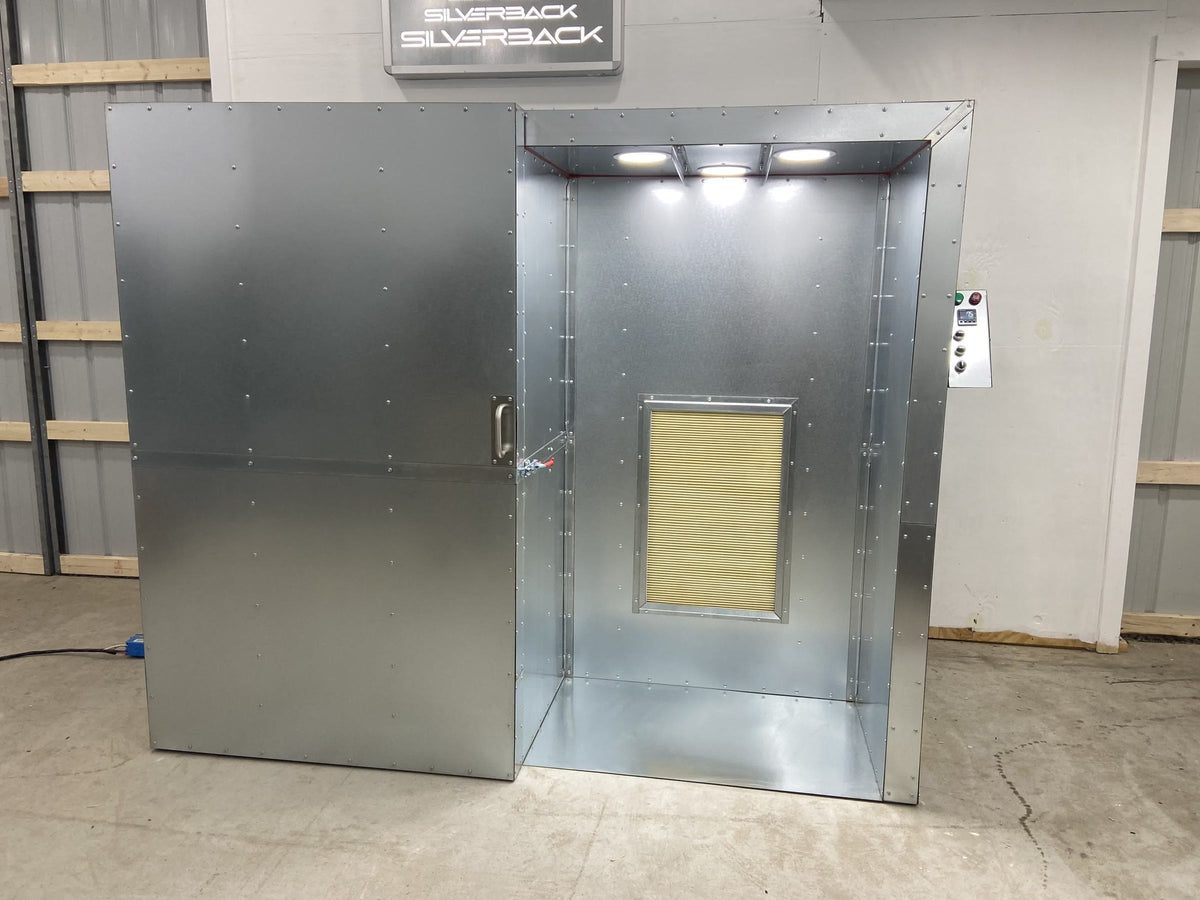

Silverback Larger All-In-One Powder Coating Oven and Spray Booth (6x3x2)
Spray and bake bigger, taller parts in one unit, when the smaller combo runs out of room.
Standard build
$3,799
2-year parts warranty and lifetime phone support included, no upcharge.
Silverback Larger All-In-One Powder Coating Oven and Spray Booth (6x3x2)
Your build
$3,799
2-year parts warranty and lifetime phone support included, no upcharge.
Not sure which options you need? Call us at 314-202-4027 and tell us what you coat. We will talk it through, no pressure.
72×38×25
Interior, in
240V
single phase
5-7 days
Ships in
Who it's for
For the shop that needs more room than the smaller combo gives.
The larger All-In-One is for the shop that wants to spray and cure in-house but needs more room than the smaller combo gives, bigger and taller parts, in a single unit. It is a natural fit for a gun shop or Cerakote refinisher, where the finish is the product and prep, spray, and cure all need to happen in one place, and where a full 72-inch bay height matters. Rather than send taller parts out to a vendor's booth, you control the whole finish in your own shop.
A working business tool · Model Larger All-In-One

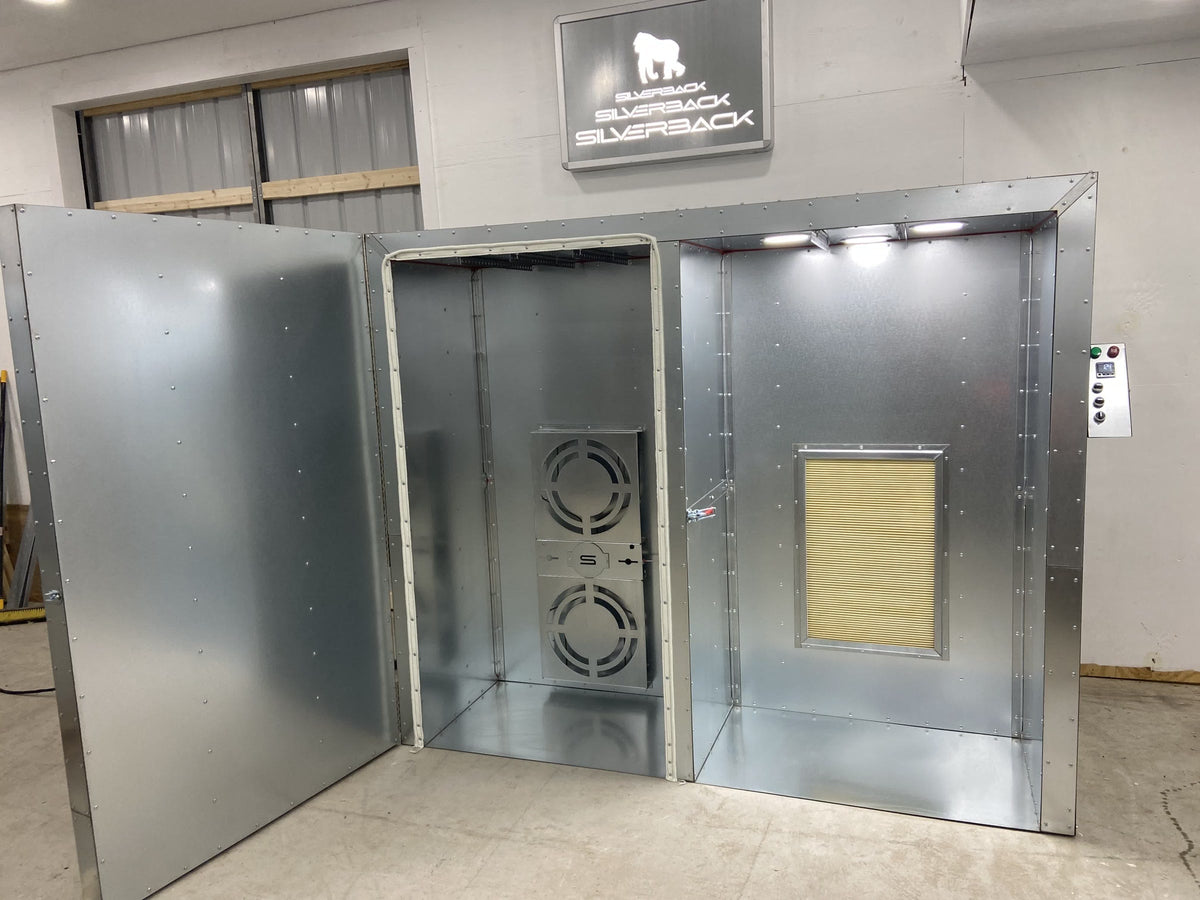

One unit does both jobs, with room to spare.
Spray in one full-height bay, cure in the other, in a single footprint. Both bays are a full 72 inches tall.
You control the whole finish.
No sending parts out, no waiting on a vendor's booth time.
It ships ready to run.
Wired, tested, and pre-programmed before it leaves our shop.
What makes a Silverback different
Twelve places we went further than we had to.
Every oven in this class looks the same from ten feet away. These are the build decisions you only find when you open the door, put a hand on the frame, or run it for two years.
The list · 12 details

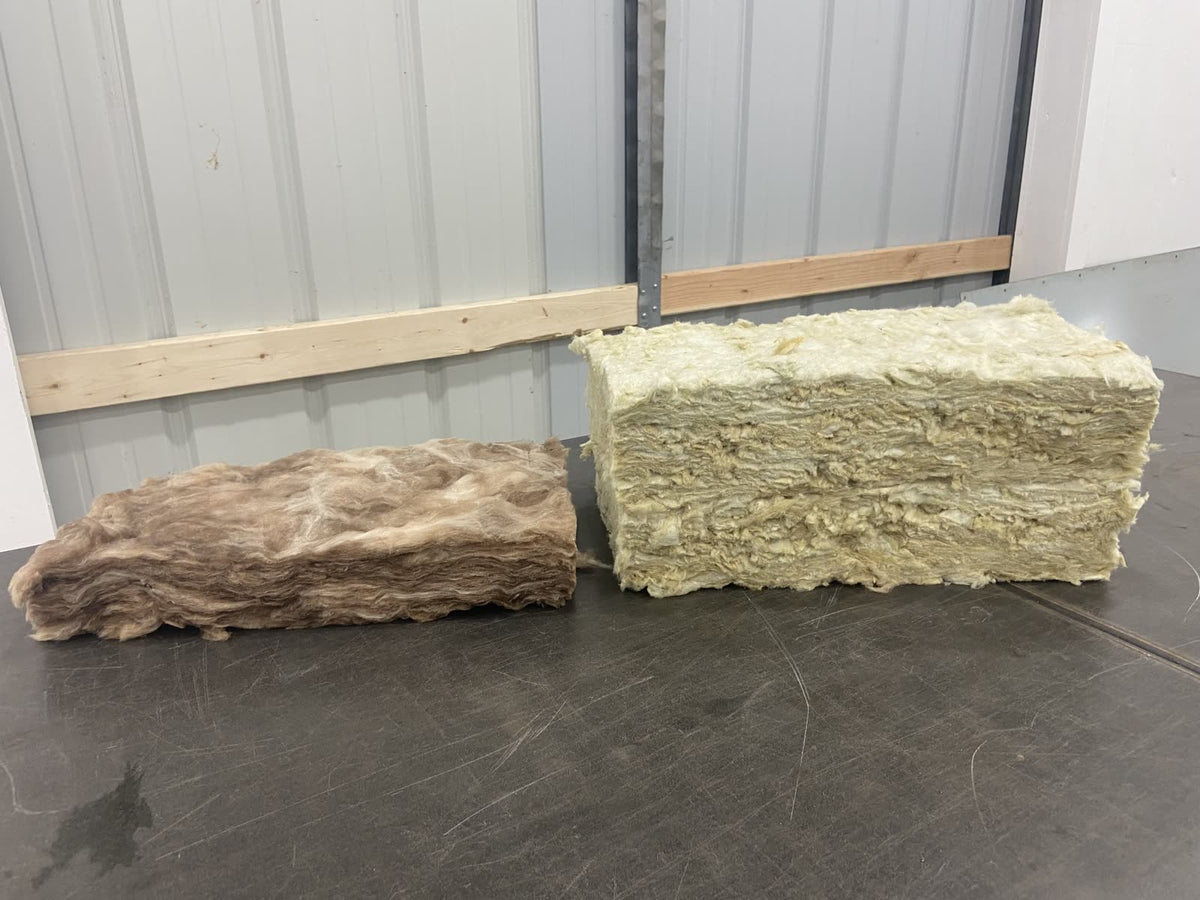

R30 rockwool 6 inch top
The 6 inch top is filled with R30 rockwool, and it is standard on every one of our ovens.
Detail 01 of 12
R30 rockwool 6 inch top
The 6 inch top is filled with R30 rockwool, and it is standard on every one of our ovens.
Rockwool is the premium choice for insulation. Every oven with the 6 inch top is filled with R30 rockwool as standard, and that top covers about 30 percent of the oven's surface area.
It costs about three times what standard insulation costs. We use it anyway, because the top is where the heat goes.
Applies to
Energy savings per batch
A deeper R30 ceiling cuts heat loss up to 63 percent, right where the heat actually goes.
Detail 02 of 12
Energy savings per batch
A deeper R30 ceiling cuts heat loss up to 63 percent, right where the heat actually goes.
Heat rises. Natural convection pulls it to the ceiling of the oven, so the ceiling is where you lose it.
R30 rockwool in a deeper ceiling cavity against R11 in a shallow one is a 63 percent reduction in heat loss through the top. You also get a more consistent finish run to run, because the box holds its temperature instead of chasing it.
The 63 percent figure compares an R30 ceiling to an R11 ceiling, using published R-value data from insulationrvalues.com/fiberglass-vs-mineral-wool. It describes heat loss through the top of the oven, not a guaranteed utility bill.
Applies to

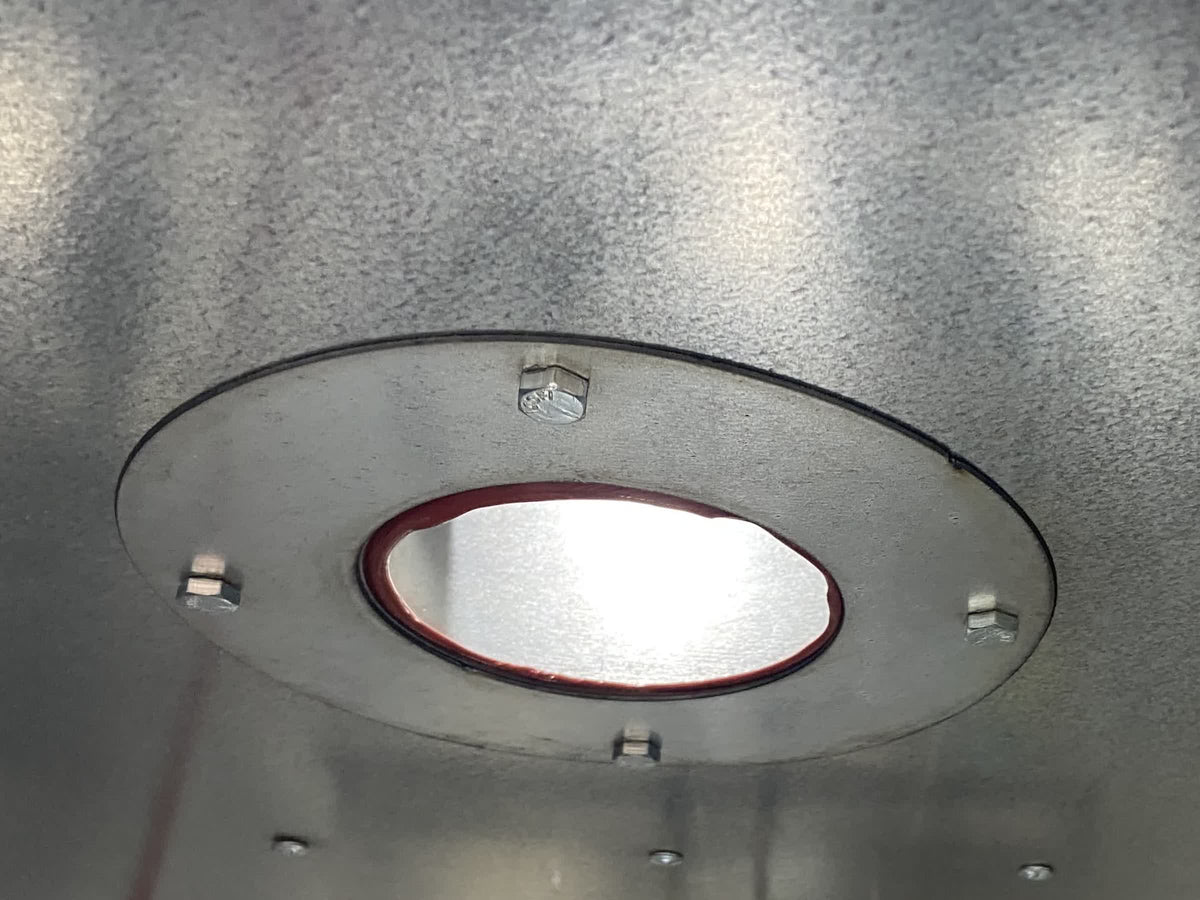

Recessed interior lighting
The light sits flush in the ceiling. Nothing hangs down for a cart to break.
Detail 03 of 12
Recessed interior lighting
The light sits flush in the ceiling. Nothing hangs down for a cart to break.
Fully recessed and flush with the ceiling, so the light can never interfere with loading or unloading. It throws light down across your parts, top to bottom.
The housing is reached from an access panel on top of the oven, so changing a bulb does not mean climbing inside. Each window comes with its own interior light and its own switch on the control box.
Applies to

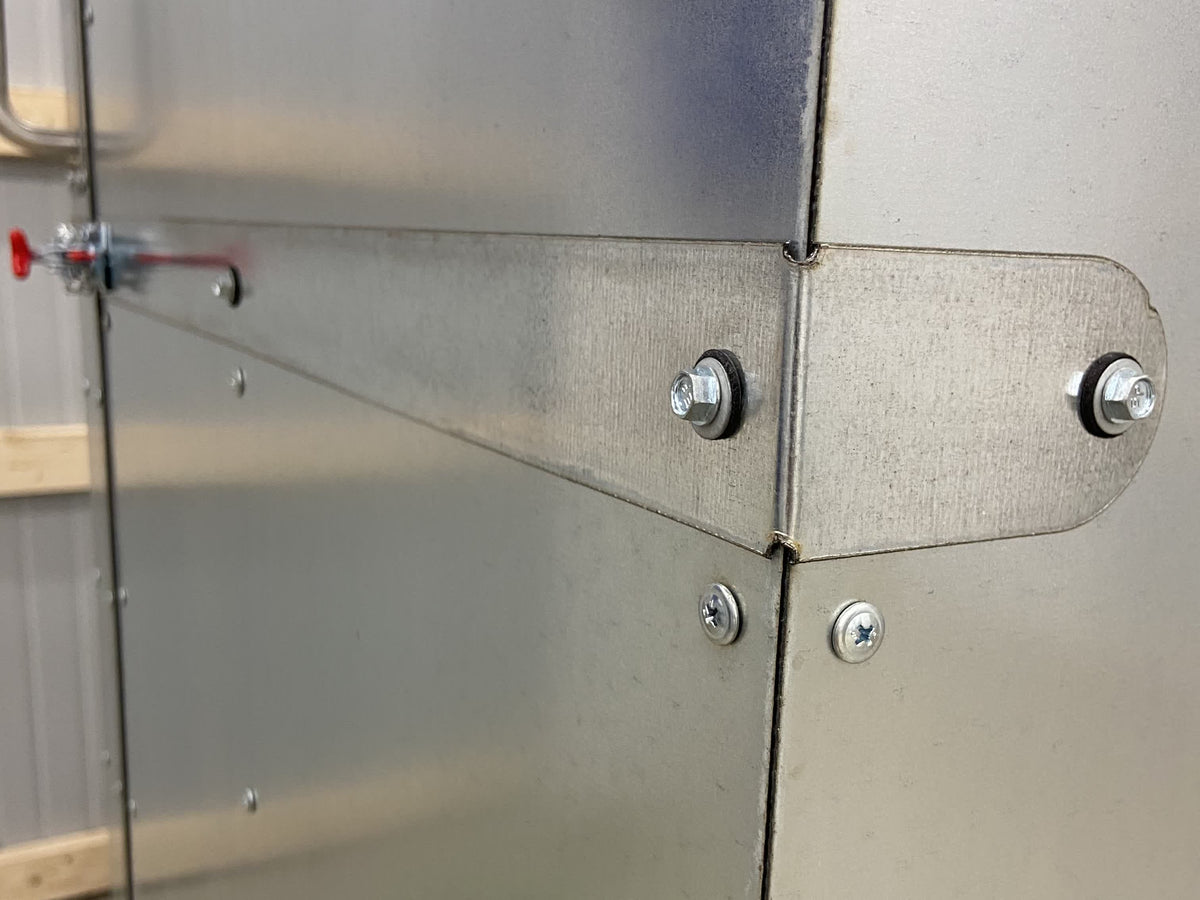

Wraparound door straps
The latches wrap the corner into the frame, so the door pulls tight corner to corner.
Detail 04 of 12
Wraparound door straps
The latches wrap the corner into the frame, so the door pulls tight corner to corner.
The dual door latches connect to the sheet metal and the structural frame across the entire front and side of the oven, wrapping around both the front corner and the back corner.
When the latch is engaged it has the full strength of the oven frame behind it. That gives you a door seal that actually seals, and keeps the heat inside where it matters.
Applies to

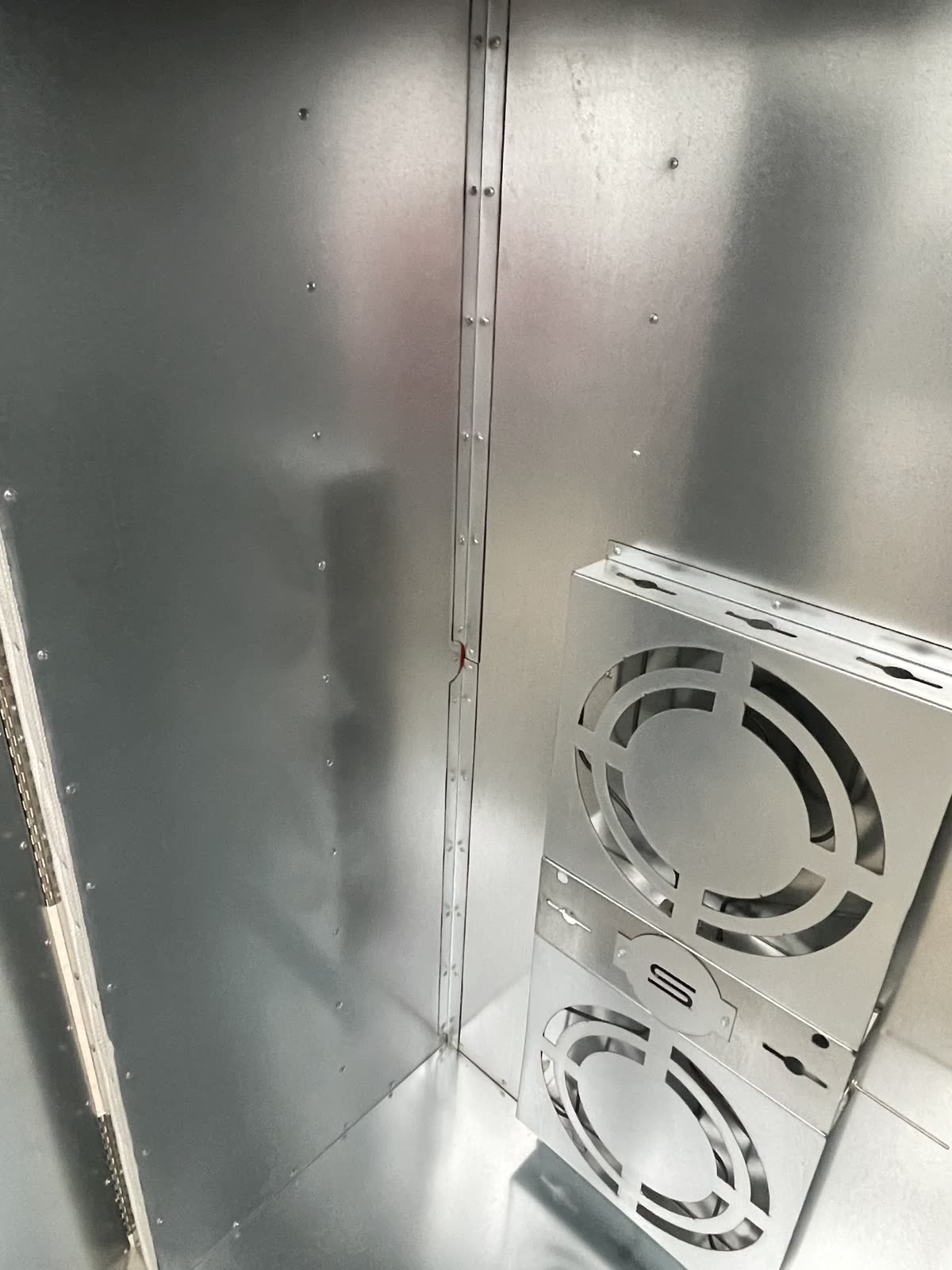

Inside corner brackets
Top to bottom brackets tie the side wall into the back wall, covering the sealed seam. That is the triple seal.
Detail 05 of 12
Inside corner brackets
Top to bottom brackets tie the side wall into the back wall, covering the sealed seam. That is the triple seal.
We did not have to put custom inside corner brackets from top to bottom in our ovens. We could have squirted some high temp sealant in the corner and called it a day.
Instead the sheet of steel is overlapped from the back wall, so there is no crack to see through. High temp RTV sealant goes over that. Then a custom top to bottom bracket goes over it, covering the wall seam mechanically and adding rigidity. That is the triple seal.
Applies to

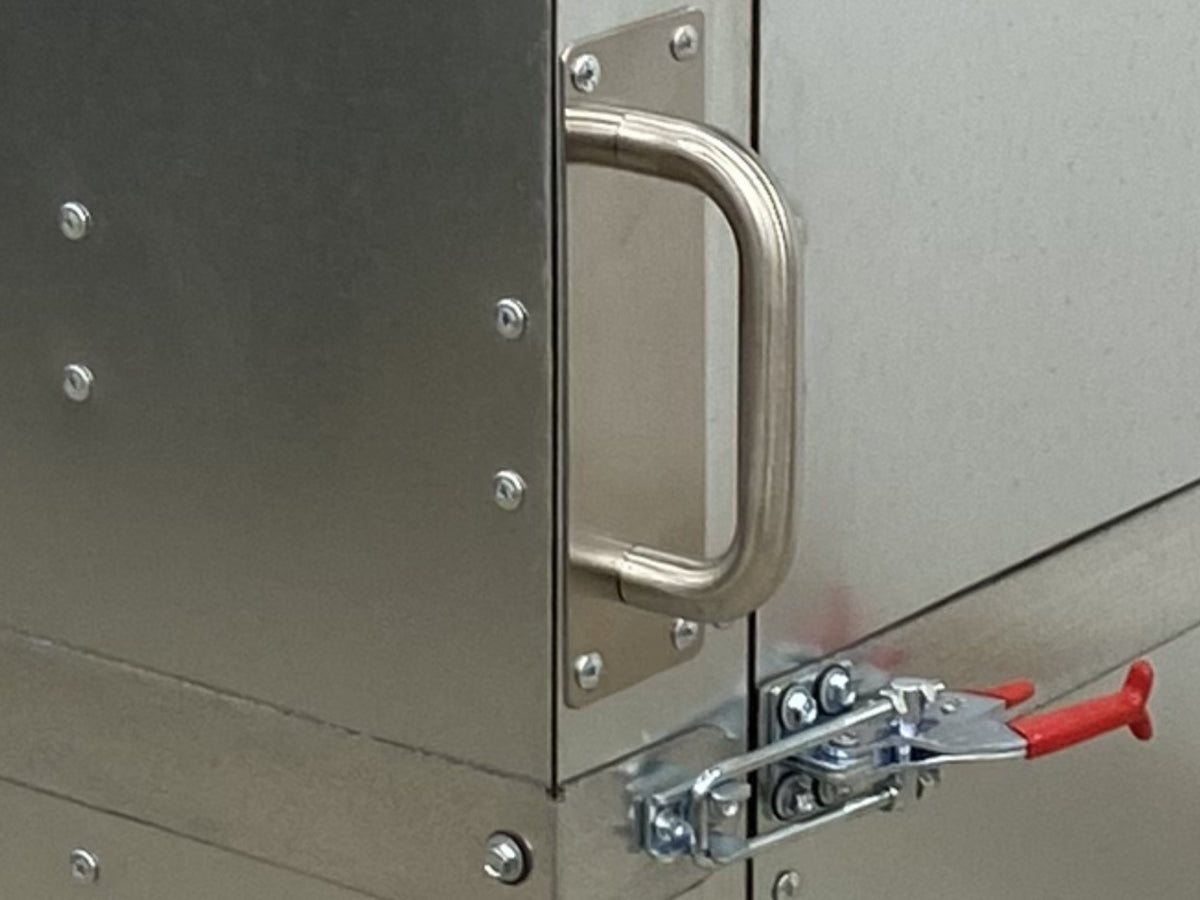

Easy reach handle
The handle is on the side of the door, not the front, so you are never pushing on a hot door face.
Detail 06 of 12
Easy reach handle
The handle is on the side of the door, not the front, so you are never pushing on a hot door face.
The common way to build an oven door is to put the handle on the front. That works fine until you are loading a part and the door starts to swing closed on you. Your only option then is to push on the inside of a hot door.
We mount ours on the side. You can grab the handle even when you are half inside the oven, without reaching all the way around the door.
Applies to

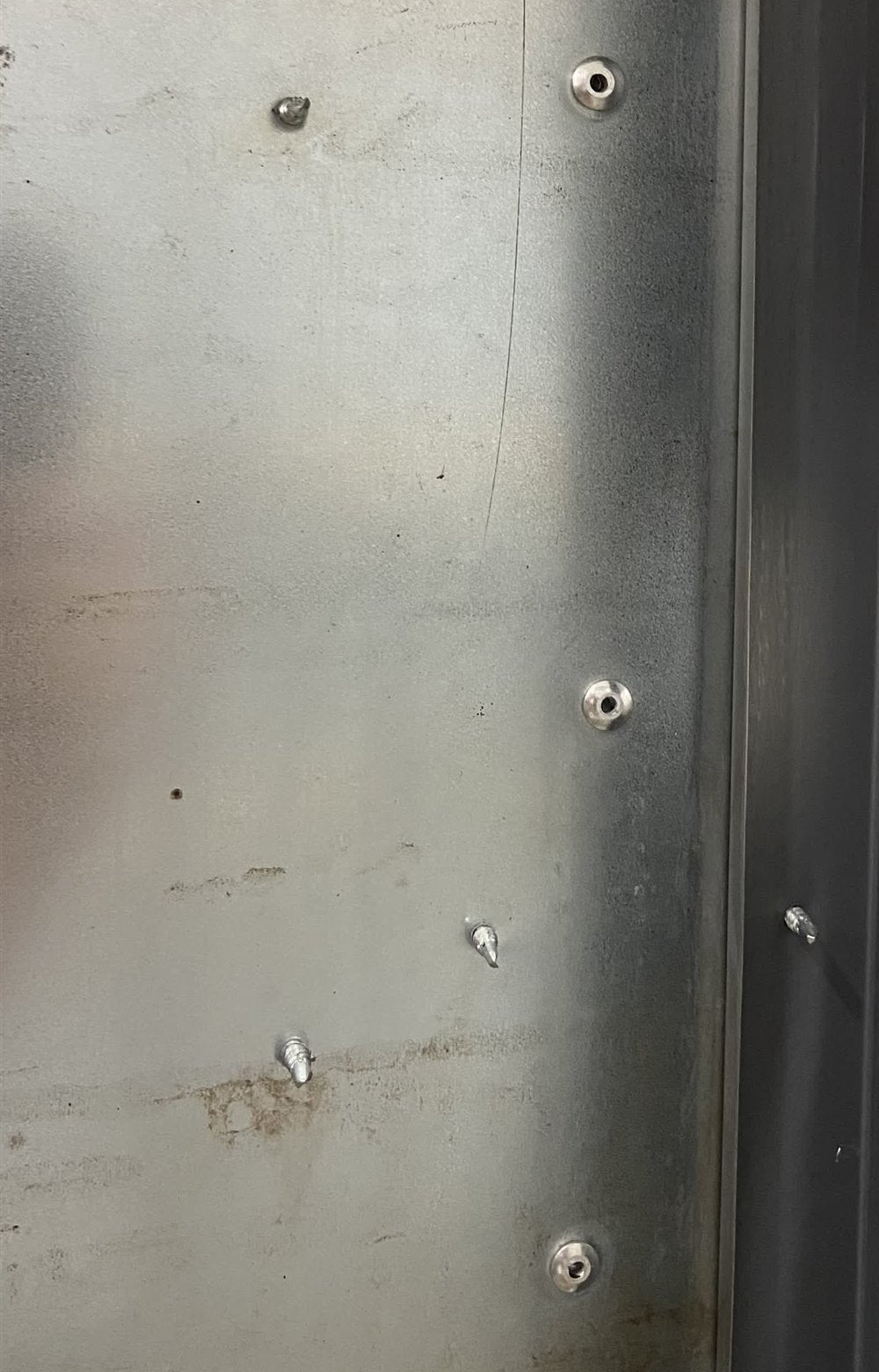

Riveted frame
Permanent rivets on every joining surface, on top of normal fasteners. It cannot shake loose.
Detail 07 of 12
Riveted frame
Permanent rivets on every joining surface, on top of normal fasteners. It cannot shake loose.
We do not just use standard mechanical fasteners. We take the extra step and install permanent rivets on all joining surfaces of the structural frame, on every Silverback product.
No loosening of the frame, for the lifetime of the product. Most others use screwed connections only.
Applies to

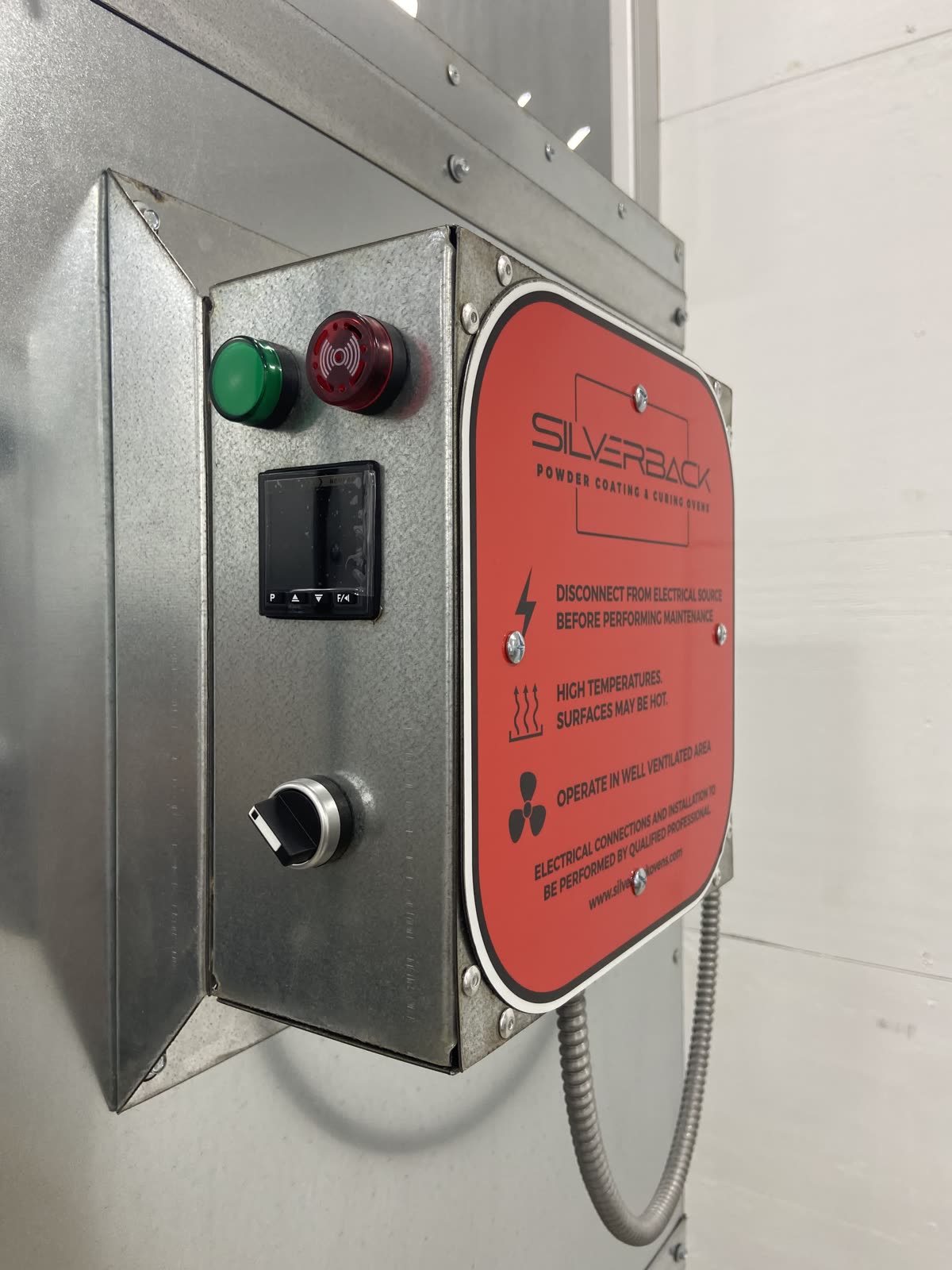

Stay cool control box gap
The box stands more than 2 inches off the oven wall, so the electronics run at room temperature.
Detail 08 of 12
Stay cool control box gap
The box stands more than 2 inches off the oven wall, so the electronics run at room temperature.
The control box is the heart of the oven, and it holds the most expensive parts to replace if something ever happens to them. Electronics last longer when they run cooler.
So every control box comes standard on a custom stay cool bracket that holds it about two inches off the oven wall, with an air gap behind it. The controls stay at ambient temperature and the oven lasts longer.
Applies to

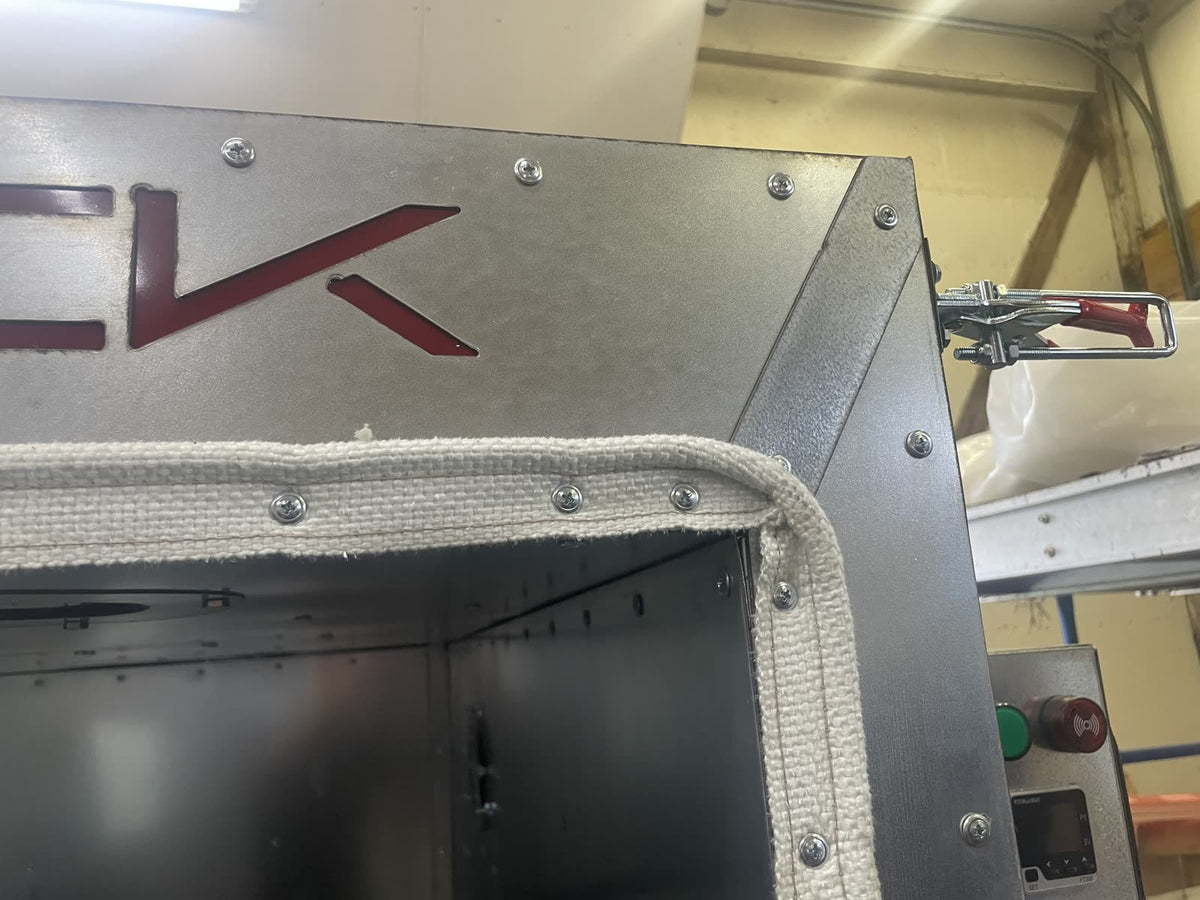

Detailed oven trim
45 degree mitered face trim instead of butt joints, then a second piece over the miter.
Detail 09 of 12
Detailed oven trim
45 degree mitered face trim instead of butt joints, then a second piece over the miter.
Butt joints scream bare minimum. We chose to do more, because it looks better and it works better.
On a common oven frame the ceiling sits on top of the side walls, so butt jointed face trim leaves that seam exposed. That is heat loss and no added strength. Our 45 degree mitered face trim covers the seam completely and mends the ceiling to the side wall. Then a second custom piece covers the miter itself.
Applies to

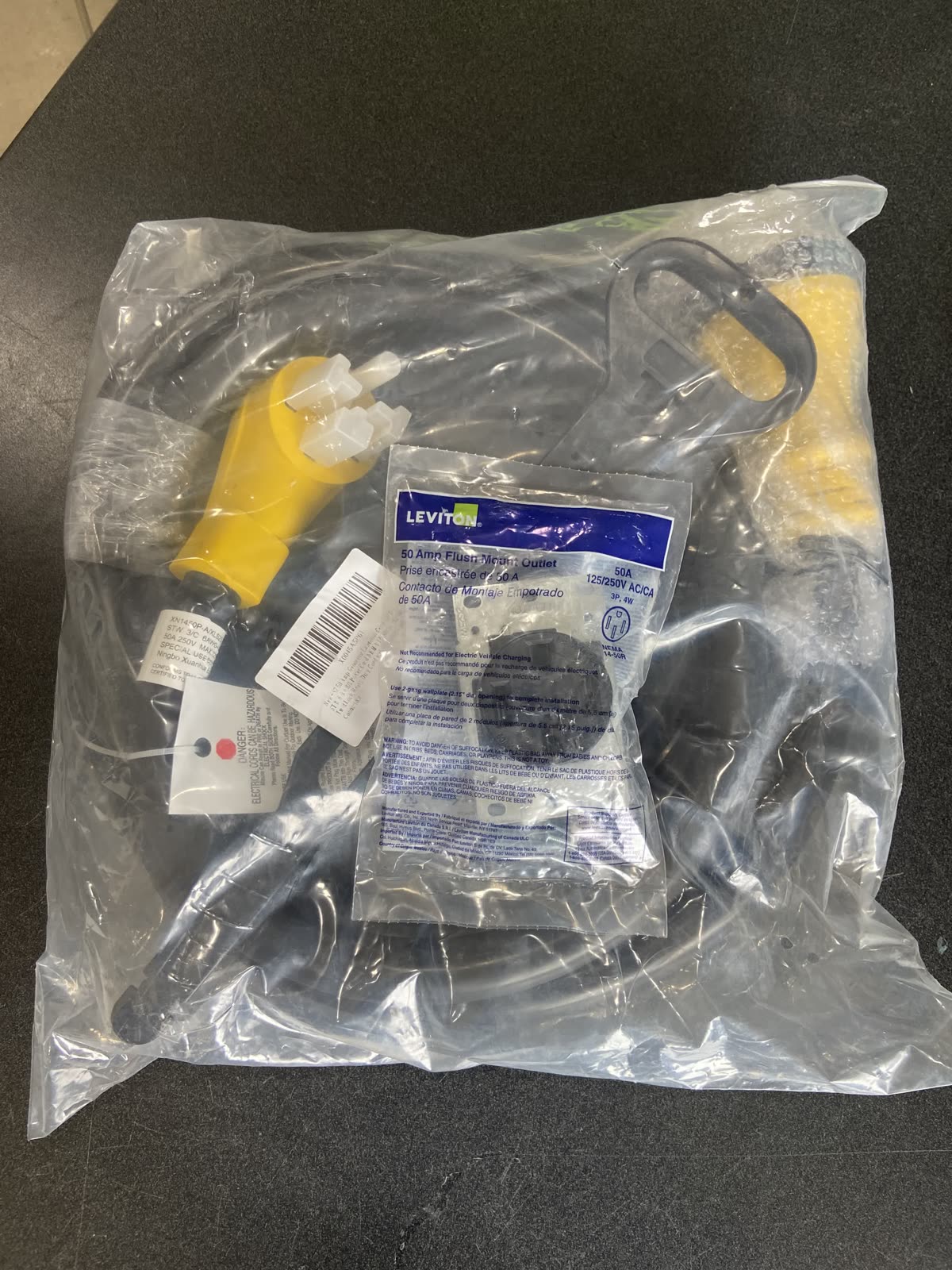

Power cord included
The cord and outlet come with it. It plugs in, and it does not cost extra.
Detail 10 of 12
Power cord included
The cord and outlet come with it. It plugs in, and it does not cost extra.
If you need it to run your oven, it comes standard. We do not believe in making the basics cost more. You can add features, but we will not charge you for something that should have been in the box.
On the 30 amp models it is a NEMA L14-30 twist lock on 10/4 wire. The 50 amp models get the same treatment. It plugs in instead of being hardwired.
Applies to

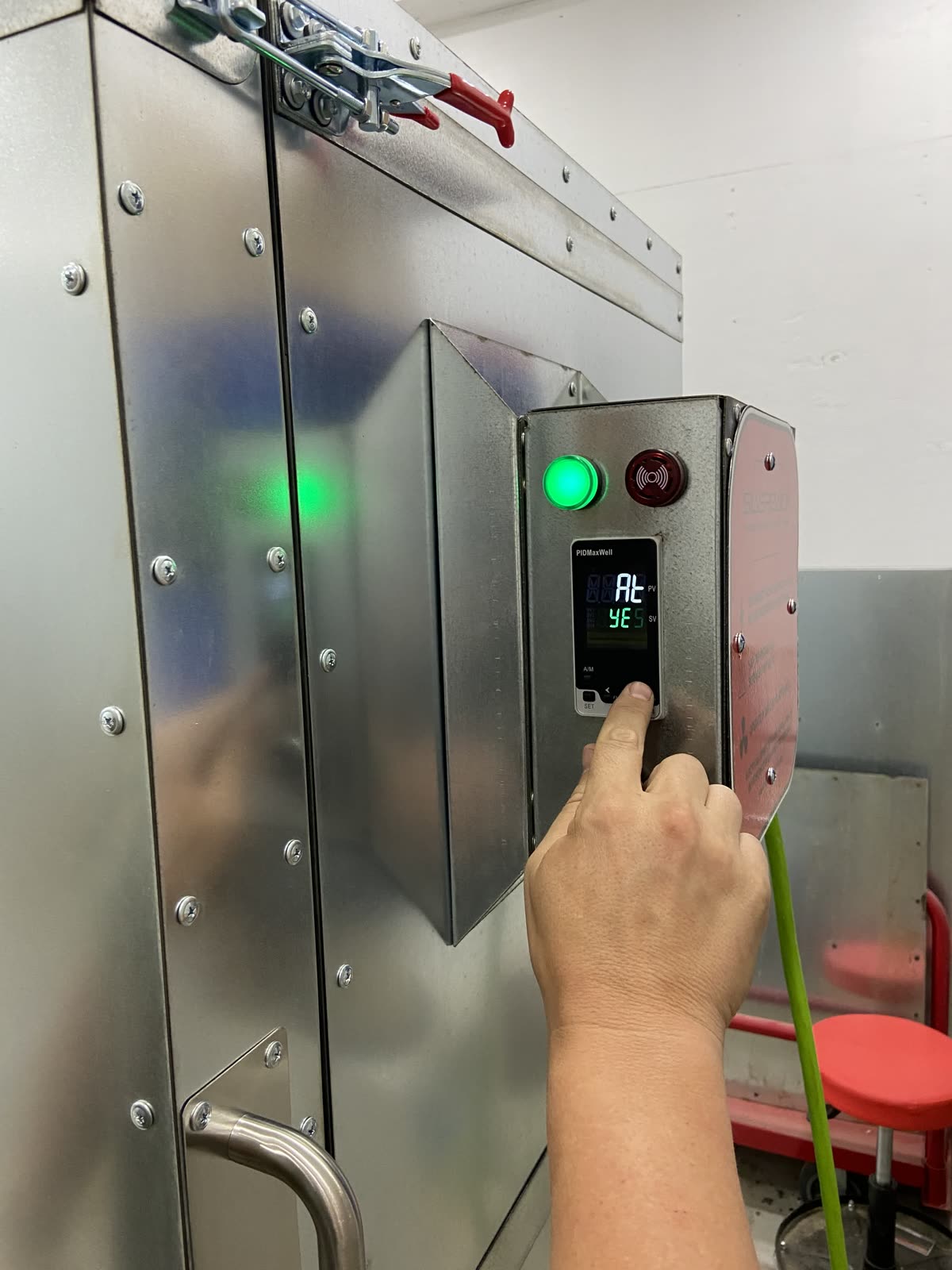

PID controller with auto tune
Auto tune calibrates the controller to your oven, in your shop.
Detail 11 of 12
PID controller with auto tune
Auto tune calibrates the controller to your oven, in your shop.
A PID controller holds a precise temperature for a set period of time, with a built in timer. A basic thermostat swings.
Auto tune is the part that matters. It calibrates itself to your specific oven model in your specific shop environment, so the oven learns its own room instead of guessing.
Applies to
Warranty and support, in the price
Two year parts warranty and lifetime phone support. Nobody pays extra for either one.
Detail 12 of 12
Warranty and support, in the price
Two year parts warranty and lifetime phone support. Nobody pays extra for either one.
The two year parts warranty is standard and built into the price on every oven, booth, and combo. It is not an upsell at checkout.
Phone support on programming lasts as long as you own the oven, no matter how long ago you bought it. We help people who did not even buy from us.
Applies to
Call 314-202-4027 and ask us about any one of these. We will tell you exactly how we build it. We reply within a business day.
The data plate
Every spec, printed in plain text.Confirm the fit before you buy.
- Interior · usable space inside 72" × 38" × 25"
- two-element build · 50A 6800W
- Bare · 850 lb crated 675 lb
| Interior dimensions | 72" x 38" x 25" (H x W x D) |
|---|---|
| Exterior dimensions | 75" x 94" x 40" (H x W x D) |
| Weight | 675 lb bare · 850 lb crated for shipping |
| Voltage | 240V single phase |
| Heating elements | 6800W (2 x 3400W) two-element build; 10,200W (3 x 3400W) three-element build |
| Breaker | 50A double-pole |
| Plug | NEMA L14-50 (cord + outlet included). Matching outlet included, no hardwiring. |
| Temperature hold | PID auto-tunes to hold your set temperature within one degree, heating and cooling |
| Ships in | Ships in 5-7 business days |
Interior dimensions describe the space you can actually use inside. Some manufacturers list the outside of the box instead, which reads bigger than what fits.
You or your employees can confirm the fit straight from this page, including which build matches your panel. Not sure? Call 314-202-4027 and we will walk you or your employees through it.
From their shops
Real ovens, in real shops, from a real company.
“Just received my 5x4x4 electric oven and it looks absolutely amazing. Extremely well built, delivery was timely and professional, and customer service has so far been top notch!â€
“Thanks for the crazy quick and precise delivery. You guys went above and beyond to accommodate my schedule.â€
“It was packaged very well. They told me they would ship it within just a couple days. Believe it or not, it actually happened that way.â€
Every review here was freely given. We do not buy reviews and we never have.
Straight answers
The questions buyers actually ask. Answered on the page.
Is one unit big enough for my parts?
This is the larger combo, built for the shop that needs more room than the smaller combo gives. You get a full spray booth and a full curing oven, each a full 72 inches tall with 38 in wide x 25 in deep of usable inside space, in one shared footprint. You spray in one bay and cure in the other without moving parts across the shop. If your parts are taller or longer than that, call us before you buy and we will point you to the right size.
What will freight cost?
Freight is real money on a unit this size, and we do not hide it. Two charges apply only when they apply ($70 residential, $70 liftgate), and you see the exact cost to your address by adding the combo to your cart and continuing to checkout, before you commit.
Is this company real?
Silverback is a real shop. Every unit is built and tested in our Illinois shop, our address is on this site, and the company is veteran owned. Call and you will reach an actual person.
Will it work with my power?
This combo runs on 240V single phase, the standard heavy circuit in most shops. It needs a 50-amp double-pole breaker and plugs in with the included 50-amp twist-lock cord, the same cord and plug as our 6x3x3 oven. Everything your electrician needs is in the spec table above. Not sure it matches your setup? Call 314-202-4027 and we will walk you or your electrician through it.
Will one unit really handle my finish quality?
A good cure is a steady temperature held over time. This oven's PID controller auto-tunes to hold temperature within one degree, and every unit is powered on and run through its functions before it ships.
Because the booth and oven share one unit, you prep, spray, and cure without carrying parts across the shop, which is where dust and delays creep in.
What happens if something breaks?
A 2-year parts warranty comes standard, including on the combo. And lifetime phone support means you can call for as long as you own it and we will walk you or your electrician through it.
What is ramp and soak, and who needs it?
Ramp and soak means the controller steps through a temperature schedule on its own: it ramps up to a temperature, holds it (the soak), then moves to the next step. Most powder jobs cure at a single temperature, so the standard controller covers them. If you run multi-step cures like Cerakote, ramp and soak is exactly what you want.
In our line, ramp and soak comes on the Bluetooth Ramp and Soak controller, which you program from your phone. The other controllers, including the touchscreen, do not include it.
What does freight shipping cost?
Ovens ship LTL freight, and what you see at checkout is the carrier's price to move your oven to your address. We pass it on, we do not add to it. Most orders land between $300 and $400. Typical extra charges are a residential fee and a liftgate fee, and each one applies only if it applies to your delivery.
Everything ships packaged with sturdy plywood protective skirting, wrapped, and strapped for the road. If it arrives visibly damaged, note it with the driver and we will make it right.
Before you buy
Freight, warranty, and returns, in plain terms.
Shipping, in plain terms
Your oven ships on a custom pallet wrapped in plastic and strapped, with 48-inch plywood protective skirting around it. Two charges are added only when they apply: $70 for residential delivery and $70 for a liftgate if you have no dock or forklift. To see your freight cost, add the oven to your cart and continue to checkout. Transit is usually 3 to 5 days.
Warranty and support
A 2-year parts warranty comes standard on this oven. And you get lifetime phone support: call us for as long as you own your oven and we will walk you or your electrician through setup, programming, or a repair, no matter when you bought. Warranty parts are sent out once you mail the broken part back.
Returns
Cancel within 24 hours for a full refund; after that a 20% restocking fee applies. Returns within 30 days of receiving the oven carry a 20% restocking fee, you cover return shipping, and the oven must be in original condition.
If there is major damage, refuse the shipment and we will handle the claim, repair or replace, and reship.
