Spray Booths

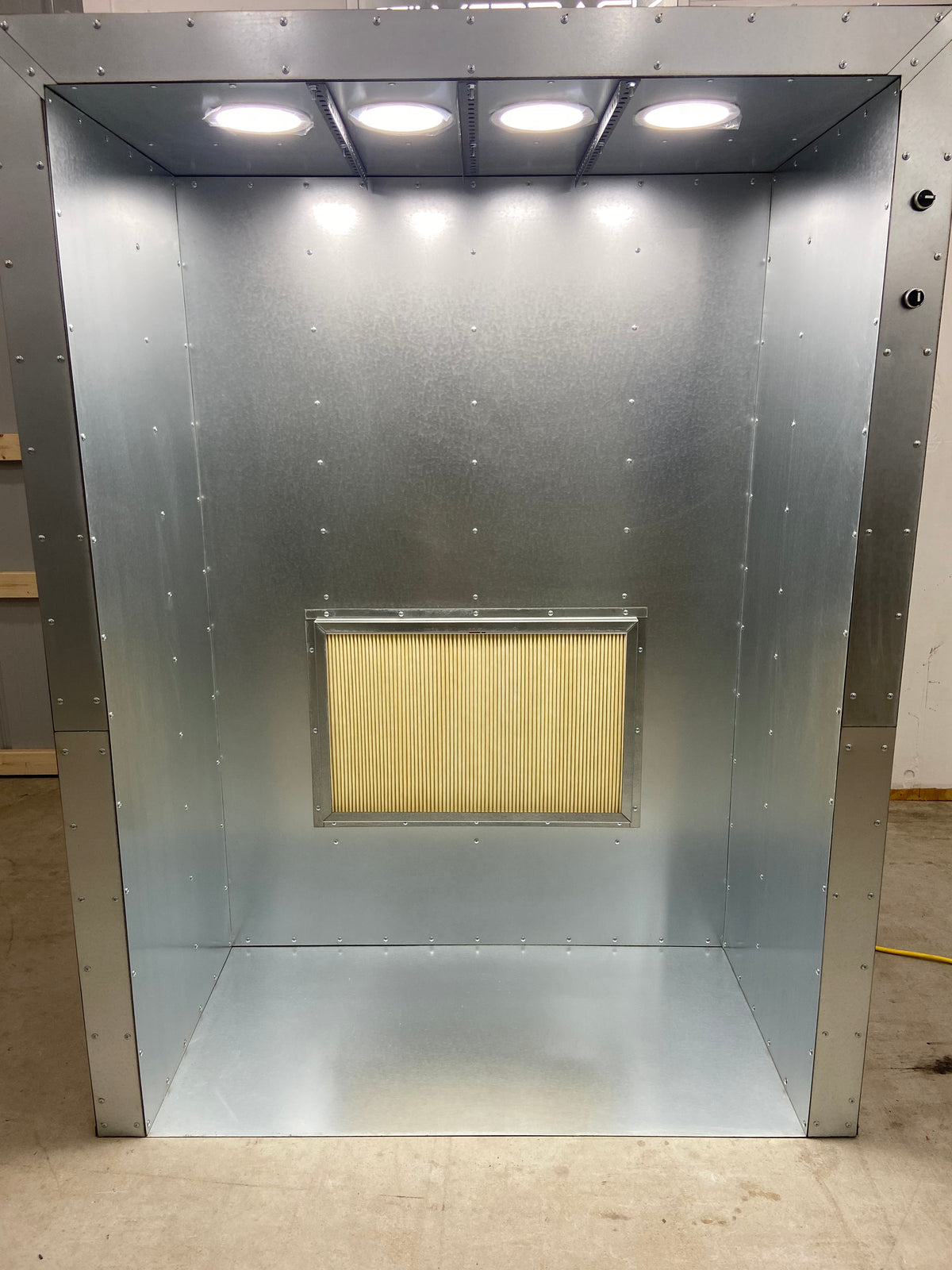

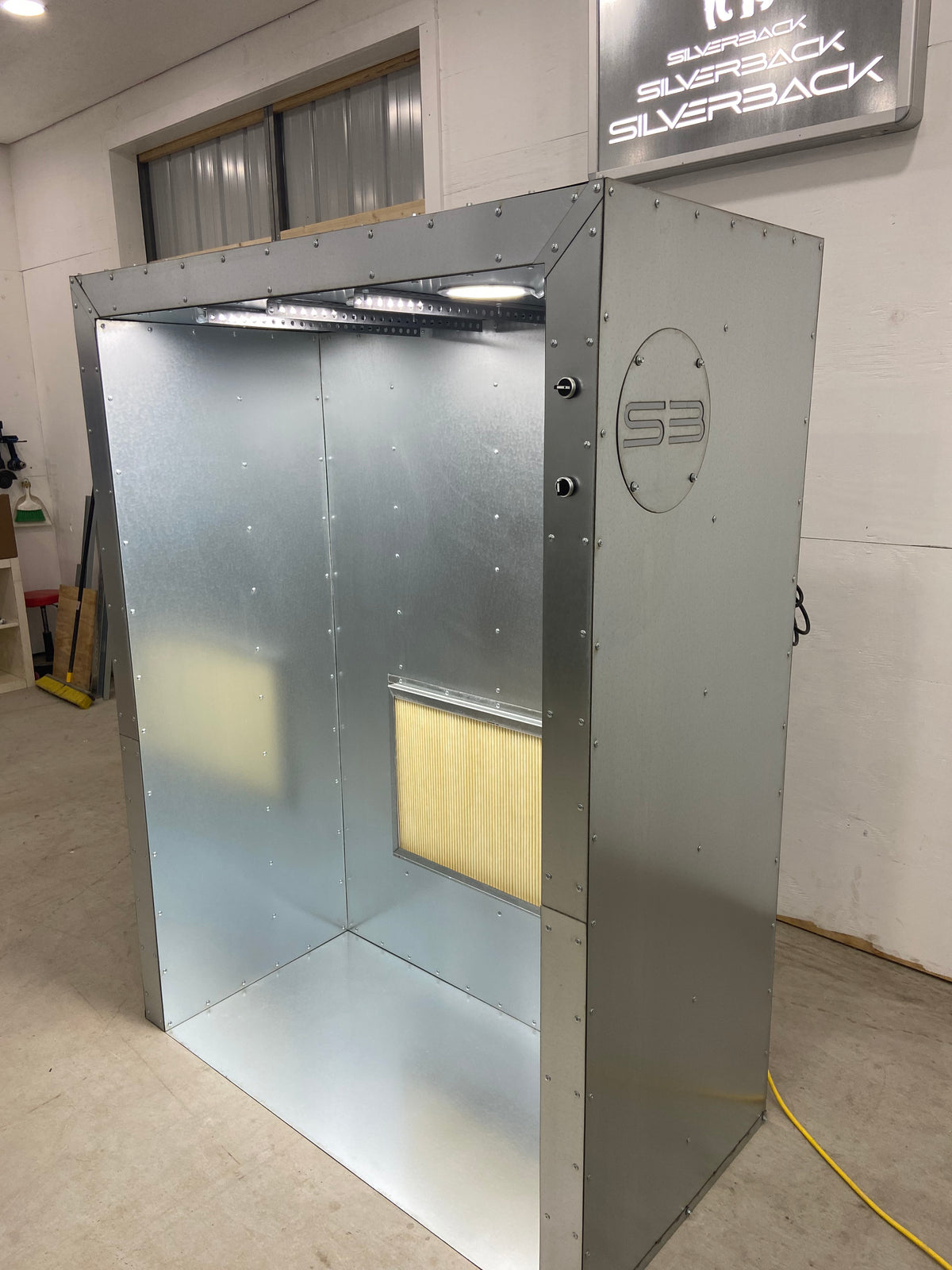

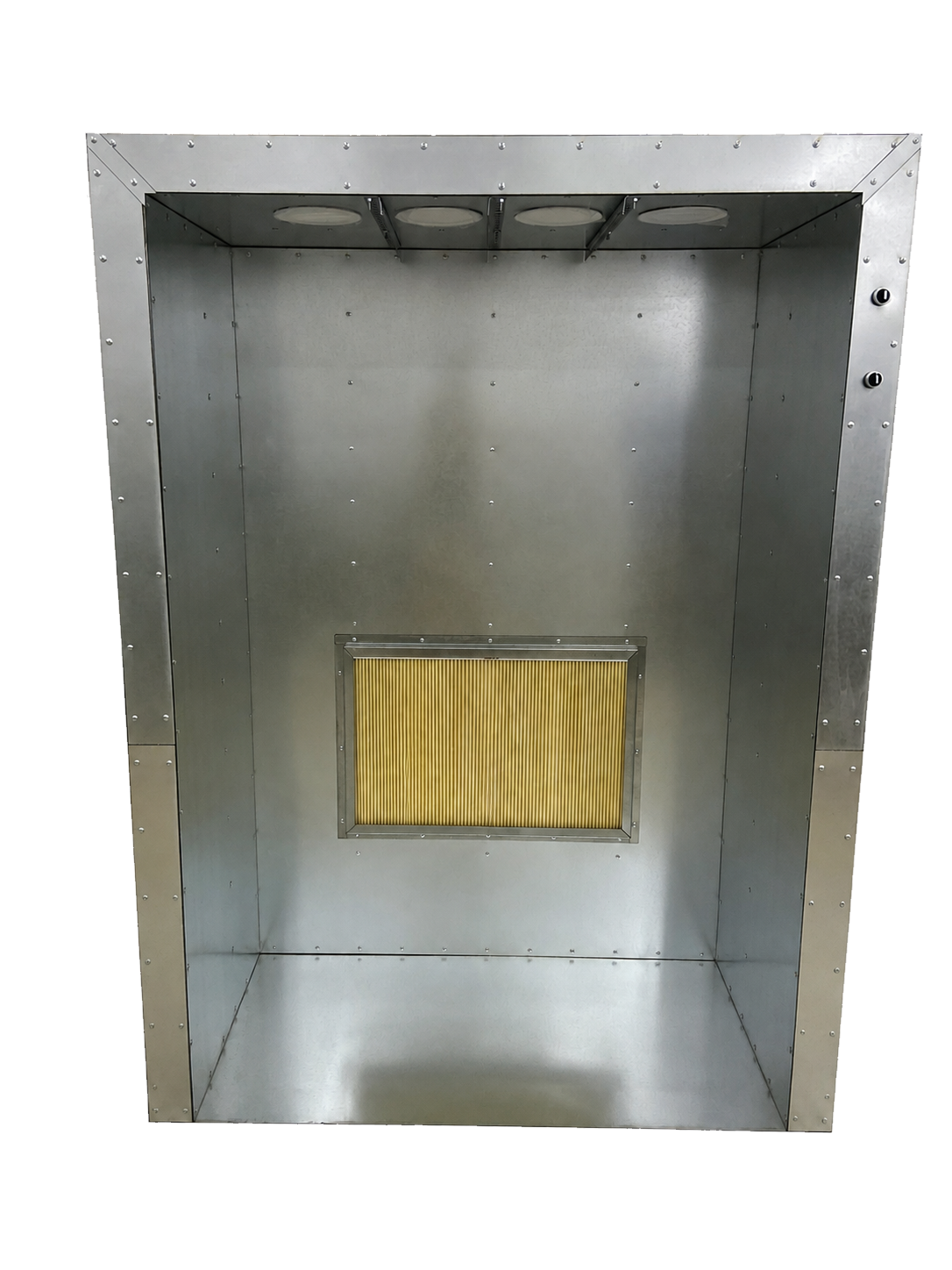

Silverback 6x4x2 Powder Coating Spray Booth
A dedicated, contained place to spray powder, with a foot more headroom.
Standard build
$2,299
2-year parts warranty and lifetime phone support included, no upcharge.
Silverback 6x4x2 Powder Coating Spray Booth
Your build
$2,299
2-year parts warranty and lifetime phone support included, no upcharge.
Not sure which options you need? Call us at 314-202-4027 and tell us what you coat. We will talk it through, no pressure.
72×50×25
Interior, in
5-7 days
Ships in
Who it's for
A dedicated, contained place to spray powder before it cures.
The 6x4x2 booth is our 5x4x2 booth built a foot taller: the same fan, the same filter, and six feet of usable height inside for longer and taller parts. It is for the shop that wants a dedicated, contained place to spray powder before it cures. You spray in the booth to keep overspray controlled and your finish clean, then move parts to your oven to bake. It pairs with any of our ovens, or the oven you already run.
A working business tool · Model 6x4x2
You keep overspray in one place.
Spray in the booth instead of dusting your whole shop, so the next finish stays clean.
It ships ready to run.

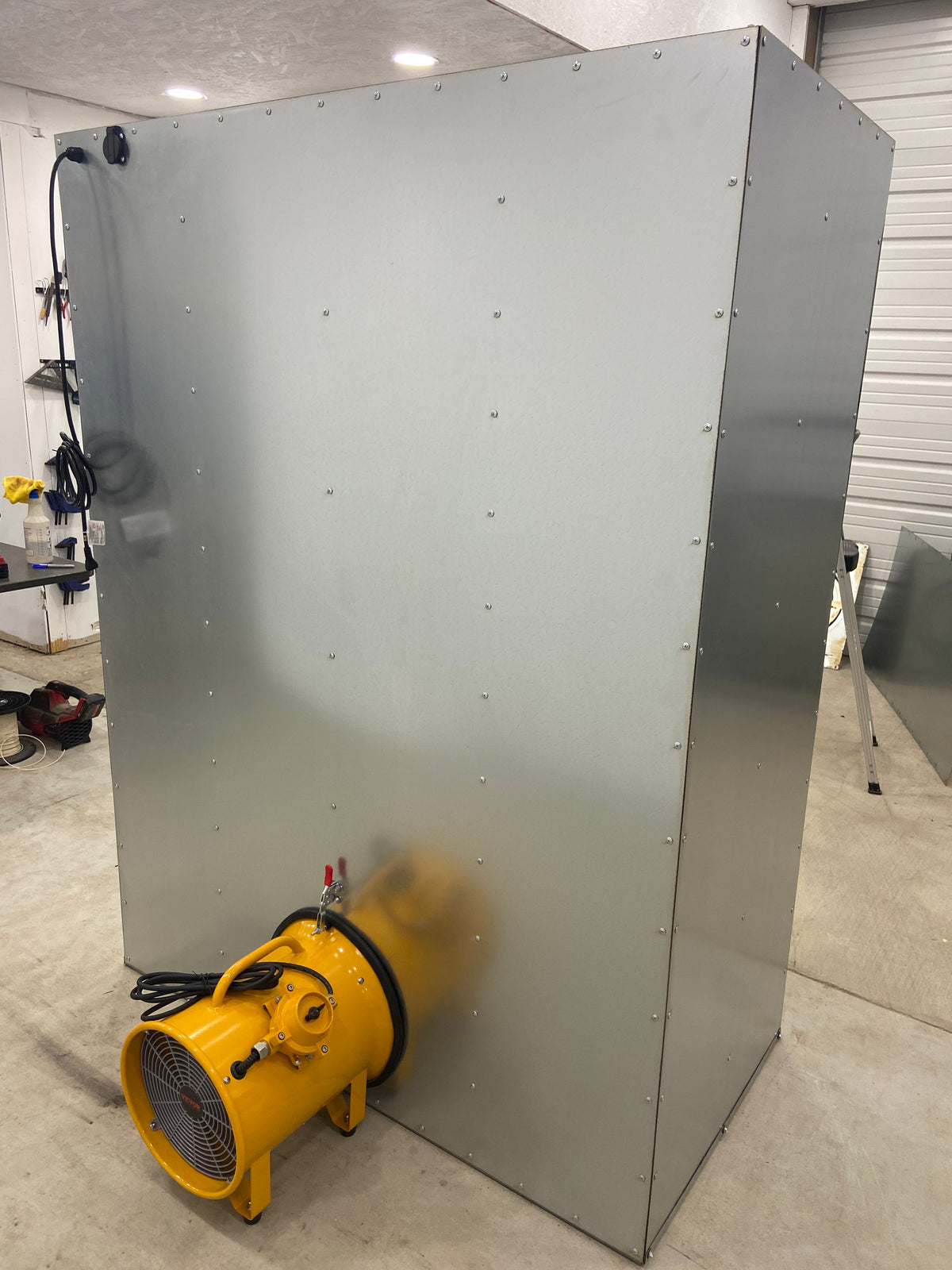

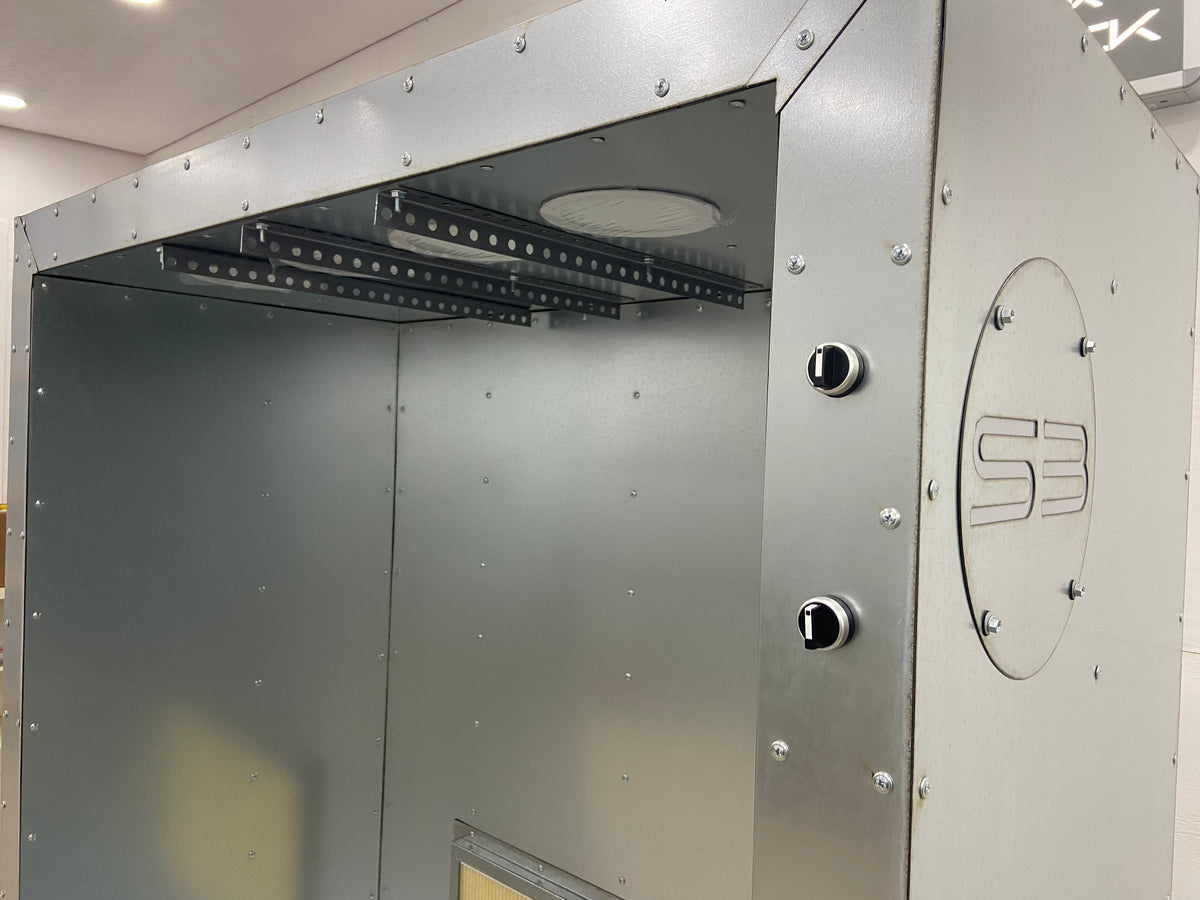

The fan mounts with a tool-free quick-connect clamp, and the light and fan each have their own switch. Set it, flip the switches, spray.
It is a working business tool.
Built and tested in our Illinois shop, sized to fit a shop bay and earn its keep.
What makes a Silverback different
Eleven places we went further than we had to.
Every booth in this class looks the same from ten feet away. These are the build decisions you only find when you open the door, put a hand on the frame, or run it for two years.
The list · 11 details
R30 rockwool 6 inch top
The 6 inch top is filled with R30 rockwool, and it is standard on every one of our ovens.
Detail 01 of 11
R30 rockwool 6 inch top
The 6 inch top is filled with R30 rockwool, and it is standard on every one of our ovens.
Rockwool is the premium choice for insulation. Every oven with the 6 inch top is filled with R30 rockwool as standard, and that top covers about 30 percent of the oven's surface area.
It costs about three times what standard insulation costs. We use it anyway, because the top is where the heat goes.
Applies to
Energy savings per batch
A deeper R30 ceiling cuts heat loss up to 63 percent, right where the heat actually goes.
Detail 02 of 11
Energy savings per batch
A deeper R30 ceiling cuts heat loss up to 63 percent, right where the heat actually goes.
Heat rises. Natural convection pulls it to the ceiling of the oven, so the ceiling is where you lose it.
R30 rockwool in a deeper ceiling cavity against R11 in a shallow one is a 63 percent reduction in heat loss through the top. You also get a more consistent finish run to run, because the box holds its temperature instead of chasing it.
The 63 percent figure compares an R30 ceiling to an R11 ceiling, using published R-value data from insulationrvalues.com/fiberglass-vs-mineral-wool. It describes heat loss through the top of the oven, not a guaranteed utility bill.
Applies to
Recessed interior lighting
The light sits flush in the ceiling. Nothing hangs down for a cart to break.
Detail 03 of 11
Recessed interior lighting
The light sits flush in the ceiling. Nothing hangs down for a cart to break.
Fully recessed and flush with the ceiling, so the light can never interfere with loading or unloading. It throws light down across your parts, top to bottom.
The housing is reached from an access panel on top of the oven, so changing a bulb does not mean climbing inside. Each window comes with its own interior light and its own switch.
Applies to
Wraparound door straps
The latches wrap the corner into the frame, so the door pulls tight corner to corner.
Detail 04 of 11
Wraparound door straps
The latches wrap the corner into the frame, so the door pulls tight corner to corner.
The dual door latches connect to the sheet metal and the structural frame across the entire front and side of the oven, wrapping around both the front corner and the back corner.
When the latch is engaged it has the full strength of the oven frame behind it. That gives you a door seal that actually seals, and keeps the heat inside where it matters.
Applies to
Inside corner brackets
Top to bottom brackets tie the side wall into the back wall, covering the sealed seam. That is the triple seal.
Detail 05 of 11
Inside corner brackets
Top to bottom brackets tie the side wall into the back wall, covering the sealed seam. That is the triple seal.
We did not have to put custom inside corner brackets from top to bottom in our ovens. We could have squirted some high temp sealant in the corner and called it a day.
Instead the sheet of steel is overlapped from the back wall, so there is no crack to see through. High temp RTV sealant goes over that. Then a custom top to bottom bracket goes over it, covering the wall seam mechanically and adding rigidity. That is the triple seal.
Applies to
Riveted frame
Permanent rivets on every joining surface, on top of normal fasteners. It cannot shake loose.
Detail 06 of 11
Riveted frame
Permanent rivets on every joining surface, on top of normal fasteners. It cannot shake loose.
We do not just use standard mechanical fasteners. We take the extra step and install permanent rivets on all joining surfaces of the structural frame, on every Silverback product.
No loosening of the frame, for the lifetime of the product. Most others use screwed connections only.
Applies to
Stay cool control box gap
The box stands more than 2 inches off the oven wall, so the electronics run at room temperature.
Detail 07 of 11
Stay cool control box gap
The box stands more than 2 inches off the oven wall, so the electronics run at room temperature.
The control box is the heart of the oven, and it holds the most expensive parts to replace if something ever happens to them. Electronics last longer when they run cooler.
So every control box comes standard on a custom stay cool bracket that holds it about two inches off the oven wall, with an air gap behind it. The controls stay at ambient temperature and the oven lasts longer.
Applies to
Detailed oven trim
45 degree mitered face trim instead of butt joints, then a second piece over the miter.
Detail 08 of 11
Detailed oven trim
45 degree mitered face trim instead of butt joints, then a second piece over the miter.
Butt joints scream bare minimum. We chose to do more, because it looks better and it works better.
On a common oven frame the ceiling sits on top of the side walls, so butt jointed face trim leaves that seam exposed. That is heat loss and no added strength. Our 45 degree mitered face trim covers the seam completely and mends the ceiling to the side wall. Then a second custom piece covers the miter itself.
Applies to
Power cord included
The cord and outlet come with it. It plugs in, and it does not cost extra.
Detail 09 of 11
Power cord included
The cord and outlet come with it. It plugs in, and it does not cost extra.
If you need it to run your oven, it comes standard. We do not believe in making the basics cost more. You can add features, but we will not charge you for something that should have been in the box.
On the 30 amp models it is a NEMA L14-30 twist lock on 10/4 wire. The 50 amp models get the same treatment. It plugs in instead of being hardwired.
Applies to
PID controller with auto tune
Auto tune calibrates the controller to your oven, in your shop.
Detail 10 of 11
PID controller with auto tune
Auto tune calibrates the controller to your oven, in your shop.
A PID controller holds a precise temperature for a set period of time, with a built in timer. A basic thermostat swings.
Auto tune is the part that matters. It calibrates itself to your specific oven model in your specific shop environment, so the oven learns its own room instead of guessing.
Applies to
Warranty and support, in the price
Two year parts warranty and lifetime phone support. Nobody pays extra for either one.
Detail 11 of 11
Warranty and support, in the price
Two year parts warranty and lifetime phone support. Nobody pays extra for either one.
The two year parts warranty is standard and built into the price on every oven, booth, and combo. It is not an upsell at checkout.
Phone support on programming lasts as long as you own the oven, no matter how long ago you bought it. We help people who did not even buy from us.
Applies to
Call 314-202-4027 and ask us about any one of these. We will tell you exactly how we build it. We reply within a business day.
The data plate
Every spec, printed in plain text.Confirm the fit before you buy.
- Interior · usable space inside 72" × 50" × 25"
| Interior dimensions | 72" x 50" x 25" (H x W x D) |
|---|---|
| Exterior dimensions | 75" x 57" x 29" (H x W x D) |
| Ships in | Ships in 5-7 business days |
Interior dimensions describe the space you can actually use inside. Some manufacturers list the outside of the box instead, which reads bigger than what fits.
You or your employees can confirm the fit straight from this page, including which build matches your panel. Not sure? Call 314-202-4027 and we will walk you or your employees through it.
From their shops
Real gear, in real shops, from a real company.
“Thanks for the crazy quick and precise delivery. You guys went above and beyond to accommodate my schedule.â€
“It was packaged very well. They told me they would ship it within just a couple days. Believe it or not, it actually happened that way.â€
“New oven and spray booth just landed. Big shout out to the awesome team at @silverbackovens for the custom touches on this slick new get upâ€
Every review here was freely given. We do not buy reviews and we never have.
Straight answers
The questions buyers actually ask. Answered on the page.
Is this company real? Who am I buying from?
Fair question with a heavy piece of equipment. Silverback is a real shop. Every booth is built and tested in our Illinois shop, our address is on this site, and the company is veteran owned. Call and talk to a real person.
What will freight cost?
Freight is real money on a unit this size, and we do not hide it. Your booth ships on a custom pallet with 48-inch plywood protective skirting around it. Two charges are added only when they apply: $70 for residential delivery and $70 for a liftgate if you have no dock or forklift. To see the exact freight cost to your address, add the booth to your cart and continue to checkout. That number is the carrier's real rate for your address, passed through with no markup added.
Will it fit my shop and my parts?
The booth is 75 inches tall, 57 inches wide, and 29 inches deep on the outside, with six feet of usable height inside and the full usable inside space listed in the spec table above. Measure your space, your ceiling, and your longest part before you buy. If you are close or want a different size, call us and we will help you pick.
Will it actually keep my finish clean?
That is the whole job of a booth. You spray inside a contained space with a custom filter frame and a 12-inch explosion-proof fan (safe to run around spray fumes) pulling overspray through the filter, so powder does not drift across your shop and settle on the next part. Add the washable K&N filter if you would rather clean a filter than keep buying disposables.
What happens if something breaks?
A 2-year parts warranty comes standard on this booth. And you get lifetime phone support: call us for as long as you own it and we will walk you through setup or a repair, no matter when you bought. Warranty parts are sent out once you mail the broken part back.
What is included in the price?

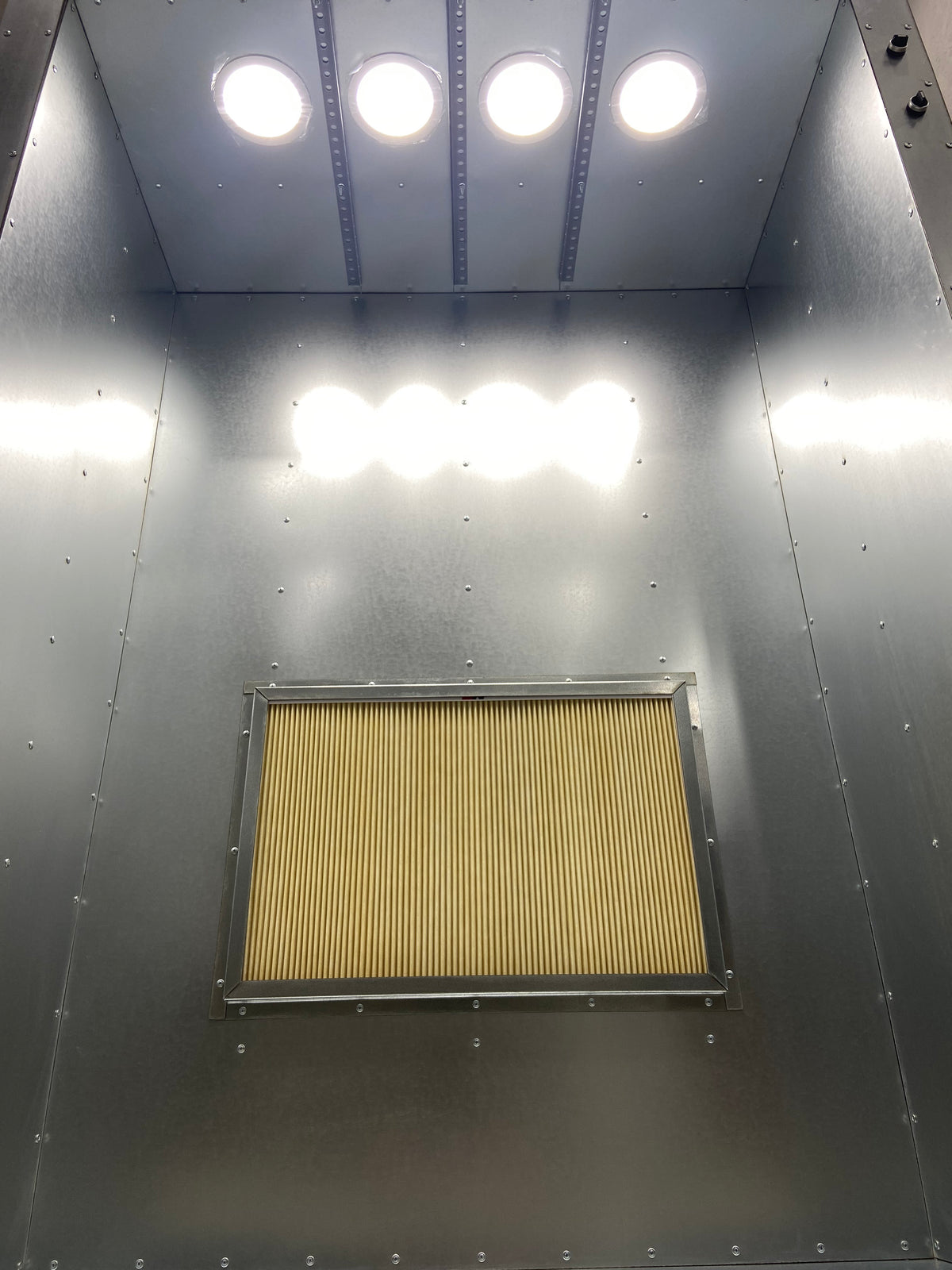

The booth arrives as one complete, ready-to-run build, with the 12-inch explosion-proof fan, four recessed ceiling lights, and the custom filter frame already installed. The one optional add-on is the washable K&N filter, if you would rather clean a filter than keep buying disposables. It is the same build as our 5x4x2 booth, a foot taller. If you want the bigger fan, two filters, and six more lights down the side walls, that is the 6x4x2 Deluxe.
Before you buy
Freight, warranty, and returns, in plain terms.
Shipping, in plain terms
Your booth ships on a custom pallet wrapped in plastic and strapped, with 48-inch plywood protective skirting around it. Two charges are added only when they apply: $70 for residential delivery and $70 for a liftgate if you have no dock or forklift. To see your freight cost, add the booth to your cart and continue to checkout. Transit is usually 3 to 5 days.
Warranty and support
A 2-year parts warranty comes standard on this booth. And you get lifetime phone support: call us for as long as you own your booth and we will walk you through setup or a repair, no matter when you bought. Warranty parts are sent out once you mail the broken part back.
Returns
Cancel within 24 hours for a full refund; after that a 20% restocking fee applies. Returns within 30 days of receiving the booth carry a 20% restocking fee, you cover return shipping, and the booth must be in original condition.
If there is major damage, refuse the shipment and we will handle the claim, repair or replace, and reship.
